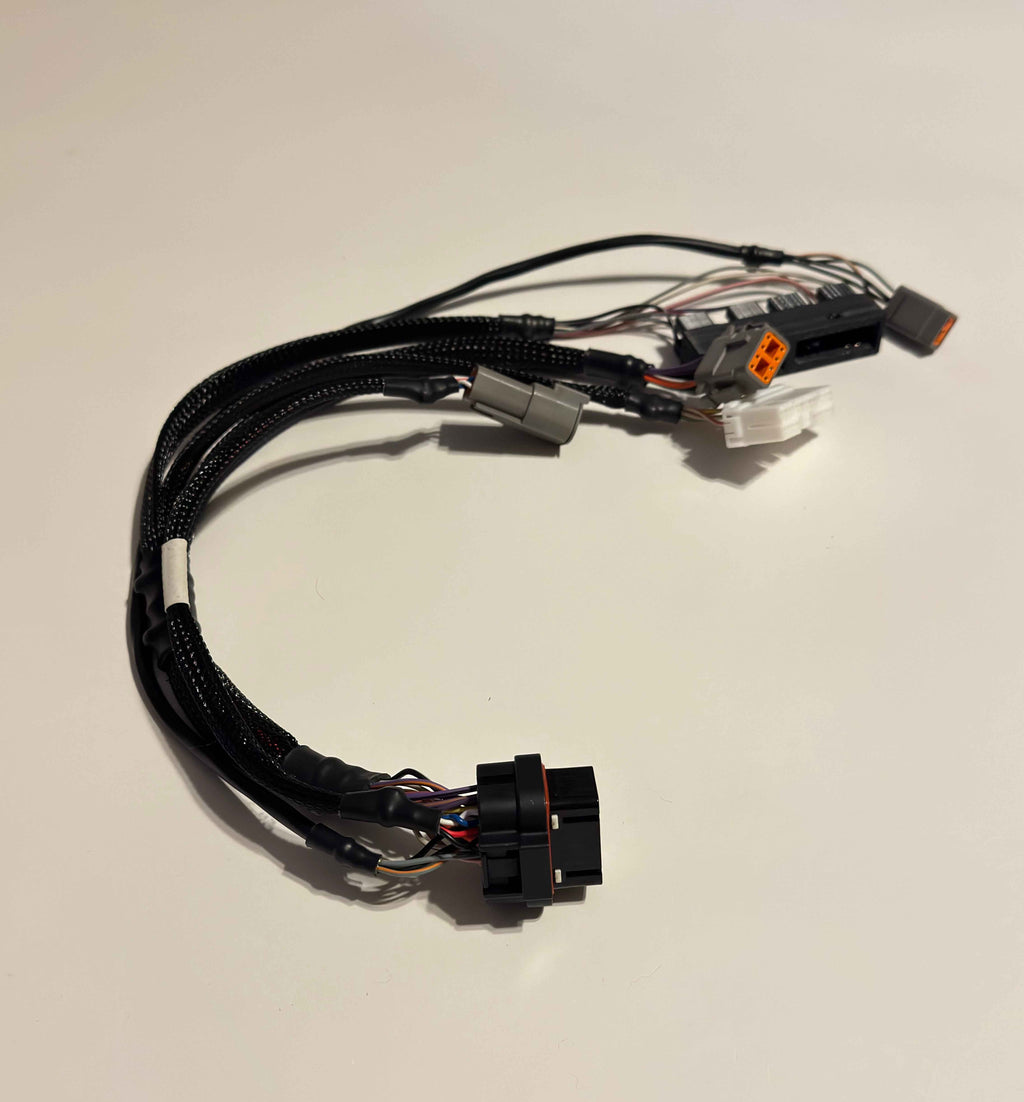

Simplify your FD RX7 Haltech UC10 Install.

Got a new haltech dash and looking for a way to install it in your FD? Our fully plug and play harness makes it easy to connect your Haltech UC10 dash to your FD RX7. No cutting or splicing required! Hooks into all factory functions so you can simulate your dash. Includes the listed allocations by default, but configuration is possible. We can wire any unused dash functions to a connector so you can utilize them later. If you'd like us to do that please add it to the notes.

The UC10 has 14 possible inputs, 10 voltage based and 4 SPI inputs. SPI's can read switch (On/Off) values and pulsed signals only.  It also features 4 DPO's, one of which are leveraged to send the speed sensor signal to OEM systems.

The default configuration assumes you have a Haltech ECU - if you have a different ECU please let us know in the notes when you add the product to your cart.

Default Configuration:

Inputs

• Left turn signal
• Right turn signal
• High beam
• Dimmer/Park lights
• Speedo Signal and Ground
• Coolant Level Sensor
• Oil Level Low Indicator
• Brake Light (Handbrake and brake fluid low)
• ABS Warning Light
• Fuel Gauge
• Rear Defog Indicator
• Seat Belt Light
• Button 1
• Button 2
• Alternator Excite

Outputs

• DPO1 to OEM speedo output (For OEM systems that require the speedo signal)

OPTIONAL IO:

• Tach Signal
• Fuel Level Low Indicator
• Cruise Control Indicator

• Additional Buttons

Includes the following connectors:

• 1x AMP 34p connector to dash
• 1x Dash connector to plugs 3 and 4
• 1x common connector for plugs 1 and 2
• 1x DTM-04 receptacle for CAN connection to ECU
• 1x DTM-06 OR DTM-08 for spare outputs and 5v/signal ground reference.

These are made to order, lead time is about 1 week. These are made for dashes that are mounted in place of the OEM cluster and are roughly 18 inches. We do offer an extended harness for dashes mounted elsewhere, the extended length harnesses are 36 inches from the OEM dash connectors to the dash connector. Additional length is available if required, please contact us.

Does not connect to the automatic transmission gear selector dash connector, but will work with an automatic vehicle, minus gear selector.

Works with S6 and S7 LHD and RHD. If you have a boost gauge from factory the OEM dash configuration is a little different, please let us know in the notes section below.

If you select custom configuration, please include your desired config in the notes or contact us with the configuration you would like.
