Fully plug and play harness for connecting your Haltech IC7 or UC10 dash to your FD RX7. No cutting or splicing required! Includes the listed allocations by default, but configuration is possible.

For UC10, buttons can be allocated in NSP to control screens, alarm cancel, or anything else you would like to toggle with a switch.

For the IC7, the price increases a little bit due to the required speedo sensor signal converter, this turns the variable reluctance signal from the FD speed sensor into a digital signal that can be read by the IC7. If you are not using the factory VSS or do not want a signal converter select the option for no speed signal converter.

Default Configuration:

• Left turn signal
• Right turn signal
• High beam
• Dimmer/Park lights
• Speedo Signal and Ground
• Coolant Level Sensor
• Oil Level Low Indicator
• Brake Light (Handbrake and brake fluid low)
• ABS Warning Light
• Fuel Gauge
• Fuel Level Low Indicator
• Rear Defog Indicator
• Button 1 (UC10 Only)
• Button 2 (UC10 Only)
• Alternator Excite (UC10 Only)

OPTIONAL:

• Tach Signal
• Seat Belt Light (included by default on IC7)
• Additional Buttons
• Cruise Control Indicator

Buttons are wired to a breakout dtm-04 plug for UC10. If you would like a flying lead dtm receptacle or the plug and pins please add that in the notes.

Includes the following connectors:

• 1x AMP 34p connector to dash
• 1x Dash connector to plugs 3 and 4
• 1x common connector for plugs 1 and 2
• 1x DTM-04 connector plug for buttons
• 1x DTM-04 receptacle for CAN connection to ECU
• 1x DTM-06 for spare outputs and 5v/signal ground reference.

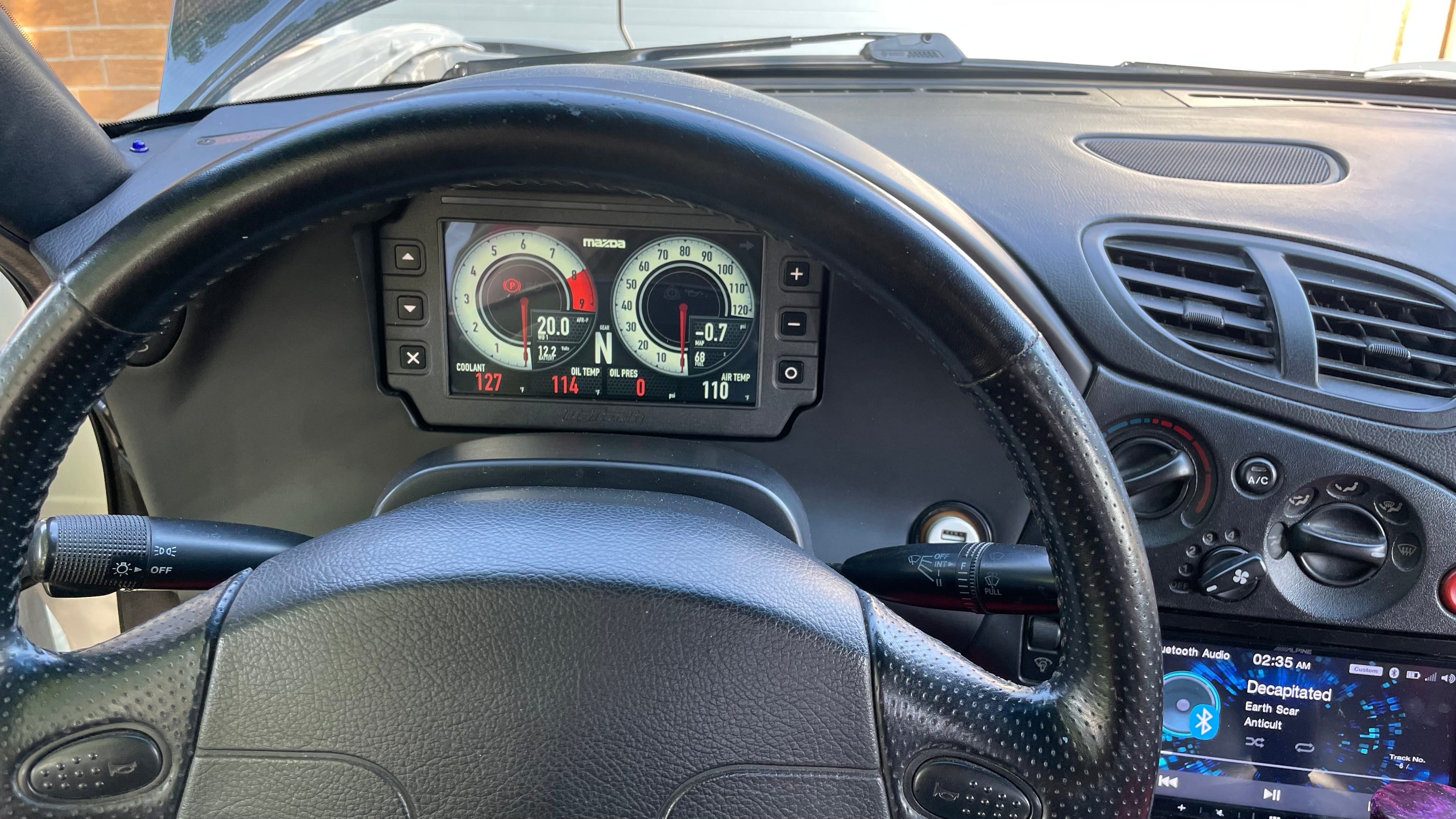

These are made to order, lead time is about 1-2 weeks. These are made for dashes that are mounted in place of the OEM cluster and are roughly 18 inches. We do offer an extended harness for dashes mounted elsewhere, the extended length harnesses are 36 inches from the OEM dash connectors to the dash connector. Additional length is available if required, please contact us.

Does not connect to the automatic transmission gear selector dash connector, but will work with an automatic vehicle minus gear selector.

Works with S6 and S7 LHD and RHD. If you have a boost gauge from factory the OEM dash configuration is a little different, please let us know in the notes section below.

If you select custom configuration, please include your desired config in the notes or contact us with the configuration you would like.
